Fire Extinguisher Filling - Refilling Machine
| Screen Touch Fire Extinguisher Filling -
Refilling Machine |
 |
 |
Automatic Filling Machine
Filling Machine+Auto Weight Filling+Vacuum Pump

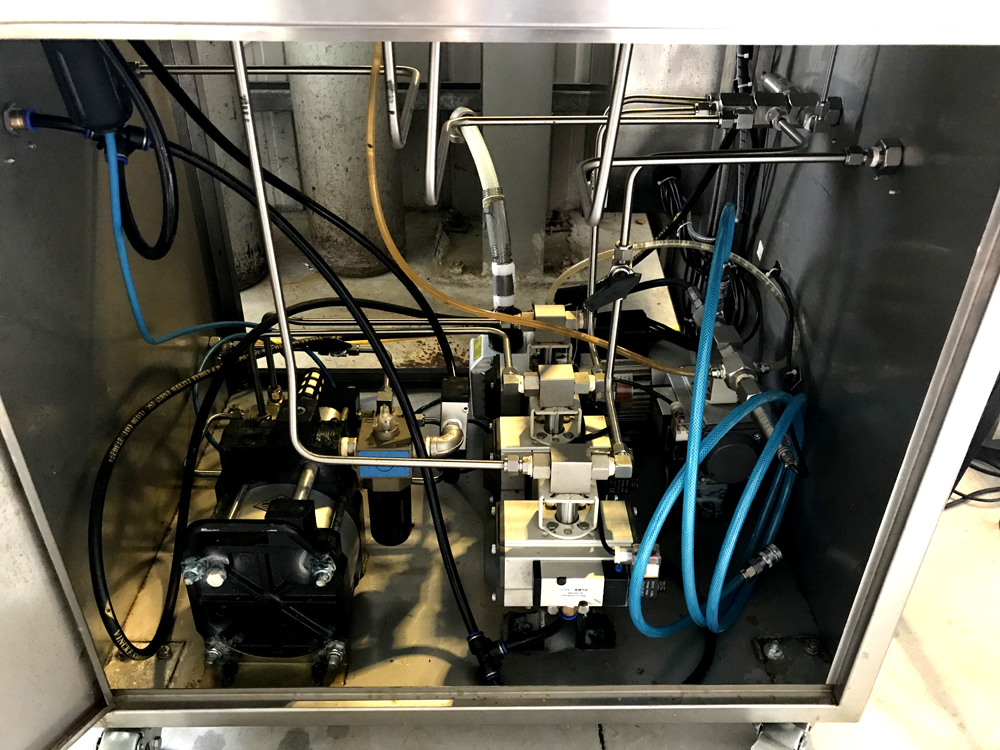

Filling machine including air-driven gas filling pump, precision
pressure gauge,
pressure reducing valve, high pressure electromagnetic valve, electric
control part, electronic scale and vacuum pump...etc.
Machine Characteristics:
Filling machine using the compressed air as power source,
through the airdriven gas booster and filling pump driving the Novec
1230 or Water filling and conveying, when the transmission weigh
reaches a certain value, the sensor signal is transferred to the gas
electromagnetic valve then driven air will stop autometically and pump
stop to work too.
Then connecting the nitrogen gas source open the high pressure nitrogen
gas vale, star the nitrogen injection.
When precision pressure gauge shows the needed nitrogen pressure then
nitrogen valve closed, filling finished. It has the characteristics of
small volume, light weigh, simple operation, reliable performance.
Especially suitable for the filling of Water and Novec 1230 in fire
extinguisher industry.
Main Parameters
Driving Source: air compressor 7-9kgf/cm2 (100-125psi)air pressure
Extinguisher Agent: Novec 1230 or Water, Nitrogen
Boost Ratioo: 6:1
Max Output: 4.80Mpa
Drive Air Inlet Port: Fast Insert 1/2" PP20-SP/PH20-SH
Extiguisher Agent/Nitrogen/High Pressure Gas Out Let Port:
M14x1.5_M18x1.5-ZG3/8
Operating Procedure - Screen Touch
1. Add Rubricating (Antifreeze machanical oil or low condensate
hydraulic oil)
2. Compressed air source presure 7-9kgf/cm2 (100-125psi)
3. Setting degree of vaccum -0.085Mpa_-0.09Mpa
Setting filling extinguisher agent WEIGHT 0.50_50.00KGS
Settle filling nitrogen 2.0_3.5Mpa
4.Open the vacuum pump switch, star to vacuum all the filling bottles.
5.Vacuumed bottle filling extinguisher Agent and Nitrogen, individually.
6. It should need to discharge remained gas and liquide via drain vale,
after each filling process, then able go for the next filling process.
Note: Vaccum for 150L liter bottle takes about 5 minutes
Fitting time is about 6_8 kgs per minute
Machine Size: 850x680x1040cm
Auto Weight Size:500x400x512cm |
AKA Halon
H2O-N2 Novec 1230
Fire
Extinguisher Filling - Refilling Machine

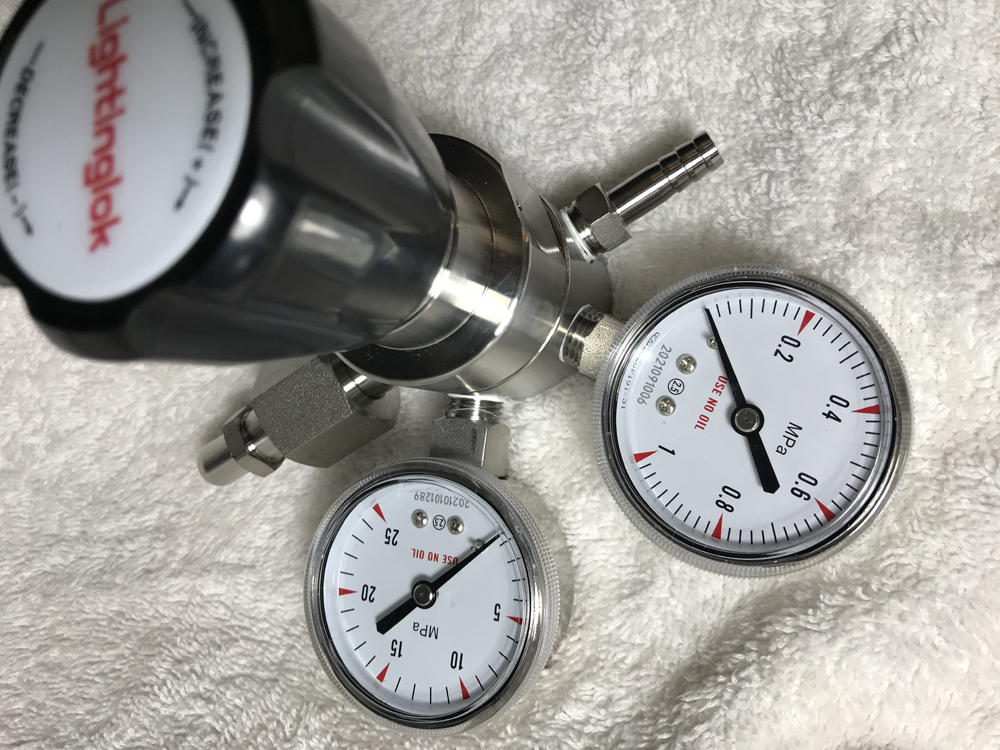

| PRESSURE
REDUCING VALVE Stainless Steel |
 |
|

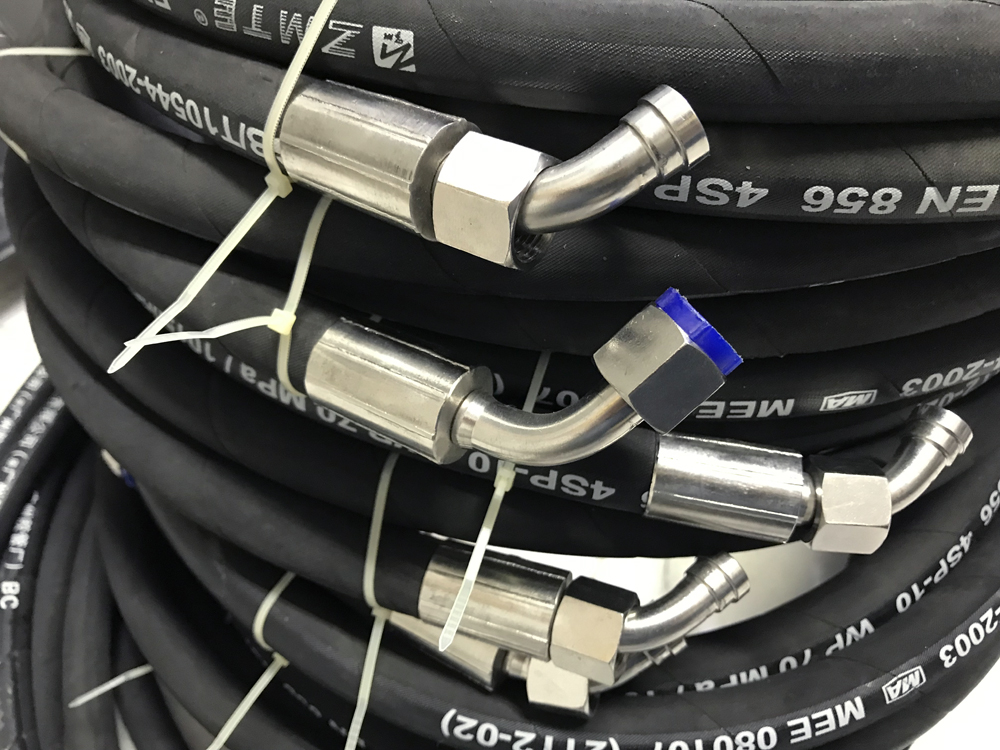

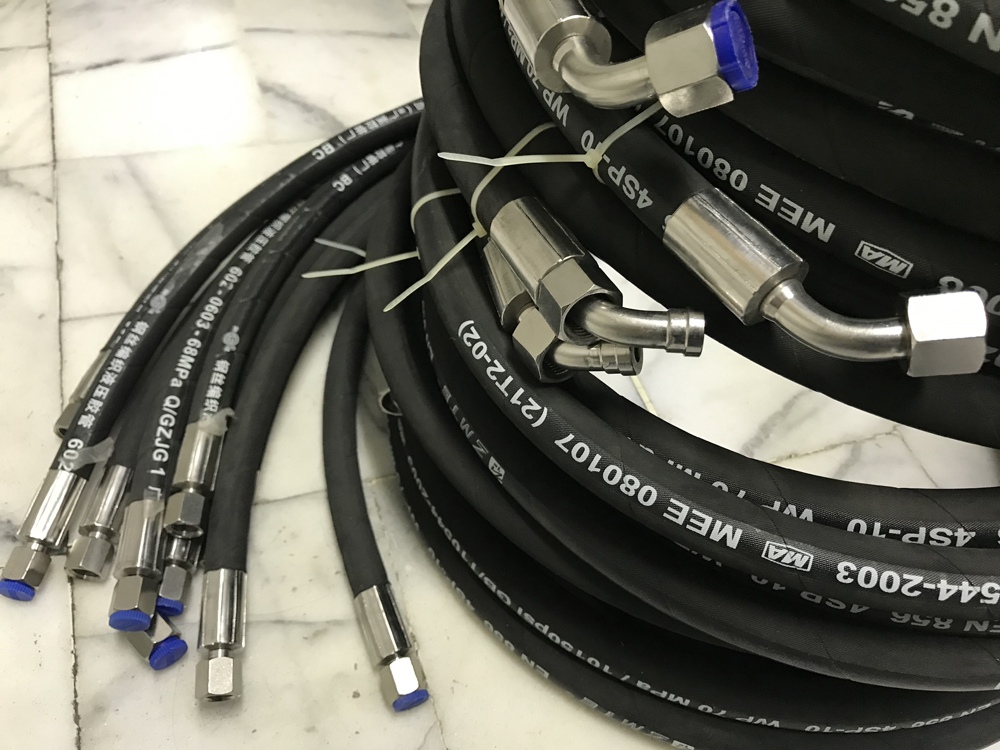

High Pressure Hose |
|
|
AKA Halon
H2O-N2 Novec 1230
Fire
Extinguisher Manufacturer
980ml, 2L, 3L and 6L
Fire
Extinguisher Halon
|
Water fire extinguisher Pressurized water fire extinguisher Refillable
water fire extinguisher Water fire extinguisher refillable
Fire extinguisher water can Refillable fire extinguisher water Fire
extinguisher water bottle Fire extinguisher water
Fire extinguisher water type
|
 |
Aka Halon
3L
Aka
Halon 2L
900ml 2L 3L
| AKA
Halon FK-5-1-12 is no corrosive, has good insulating property, never
damages electronic equipment, precision instruments, paper documents,
cultural relics and antiques, generates no residue after use, and may
substitute for sprinkler system, and dry chemical and foam extinguishing
system to protect the high-valued assets. |
|
FK-5-1-12
extinguishing agent has excellent extinguishing characteristics and it
can put out Type A, B and C fire, is non-conductive and after
ejection it fast evaporates without any residue. Its extinguishing
concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly
approaches that of halon extinguishing agent.
Ozone
Depletion Potential Of Zero
FK-5-1-12
clean extinguishing agent has good environmental harmony, and its Ozone
Depletion Potential (ODP) is 0, Global Warming Potential (GWP)
<1.0, and the Atmospheric life Time (ALT) is 0.014 year
|
|
Results of toxicity test of FK-5-1-12
|
Test item
|
Test result
|
|
4-hour acute inhalation
|
Almost no toxicity (LC50＞100000ppm)
|
|
Carcinogenicity
|
No carcinogenicity
|
|
Acute oral
|
Low (LD50＞5000mg/kg)
|
|
Acute dermal
|
Low (LD50＞2000mg/kg)
|
|
Irritation to eyes
|
No irritation
|
|
Irritation to skin
|
No irritation
|
|
Allergy to skin
|
Non-skin sensitizer
|
|
Chromosome aberration
|
Negative
|
From
the above it is clear that FK-5-1-12 extinguishing agent ensures the
extinguishing efficiency, meets the requirements on use safety, is
almost harmless to human body, and is much suitable for extinguishing
and protection of the person-residing place. |
|
|
|
Results of toxicity test of FK-5-1-12
|
Test item
|
Test result
|
|
4-hour acute inhalation
|
Almost no toxicity (LC50＞100000ppm)
|
|
Carcinogenicity
|
No carcinogenicity
|
|
Acute oral
|
Low (LD50＞5000mg/kg)
|
|
Acute dermal
|
Low (LD50＞2000mg/kg)
|
|
Irritation to eyes
|
No irritation
|
|
Irritation to skin
|
No irritation
|
|
Allergy to skin
|
Non-skin sensitizer
|
|
Chromosome aberration
|
Negative
|
From the
above it is clear that FK-5-1-12 extinguishing agent ensures the
extinguishing efficiency, meets the requirements on use safety, is
almost harmless to human body, and is much suitable for extinguishing
and protection of the person-residing place.
|
|
|
|
|
Quality
specification
|
Product
|
Purity/%
|
Water content/
ppm
|
Acidity
(as HCl)/
ppm
|
Non-volatile residue(%)
|
Suspended matter
or sediment
|
|
FK-5-1-12
|
≥99.7
|
≤10
|
≤3
|
≤0.01
|
NONE
|
|
Forest Fire
|
FK-5-1-12
Physical Properties：
|
Property
|
Unit
Value
|
|
Molecular
Mass
|
316.4
|
|
Boiling
Point at1013bar
|
49.2℃
|
|
Freezing
Point
|
-108
℃
|
|
Liquid
Density
25℃
|
1.6g/ml
|
|
Liquid
Viscosity
|
0.524
cp
|
|
Critical
Temperature
|
168.66℃
|
|
Critical
Pressure
|
18.66
bar
|
|
Critical
Density |
639.1kg/m³ |
|
Heat Of
Vaporization At Boiling Point |
88 kj/kg |
|
Solubility
Of Water in FK-5-1-12 25℃ |
<0.001
wt% |
|
Vapour
Pressure 25℃ |
0.40（5.87）bar(psia) |
|
Dielectric
Strength |
~
110KV/mm |
|
|
|
FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and
Halon and part of the product：
|
Item
|
FK-5-1-12
|
HFC-227ea
|
HFC-236fa
|
Halon1211
|
Halon1301
|
|
ODP
|
0
|
0
|
0
|
4
|
10
|
|
GWP
|
1
|
3800
|
9400
|
11300
|
6900
|
|
ALT
|
0.014
|
36.5
|
226
|
11
|
65
|
|
ODP:
Ozone
Depletion Potential
GWP:
Global
Warming Potential
ALT:Atmospheric
Life
Time
(per
Year)
|
|
Highly
efficient and safe for people
The
extinguishing concentration of FK-5-1-12 clean extinguishing agent
is much lower than NOAEL value, and has extremely low toxicity and
thus high safety. The extinguishing agent is registered in
USE.P.A.T.S.C.A. |
|
FK-5-1-12
Concentrations
and Safety Margins Comparison：
|
Item
|
FK-5-1-12
|
HFC-227ea
|
CO2
|
Halon1301
|
|
Boiling
Point ℃
|
49.2
|
-16.4
|
-78.4
|
-57.8
|
|
Use
Concentration
|
4-6%
|
7.5-8.7%
|
30-75%
|
5%
|
|
NOAEL
|
10%
|
9%
|
＜5%
|
5%
|
|
Safety
Margine
|
72-122%
|
5.9-20%
|
Lethal
|
0
|
|
NOAEL： Invisible
Harm
Concentration
|
|
| Safety Margins=
FK-5-1-12 -Use Concentration / Use Concentration X 100% |
| The
chemical name of FK-5-1-12 is perfluoro (2-methyl-3-pentanone), its CAS number
is 756-13-8, chemical code is FK-5-1-12, molecular formula is C6F12O,
and structural formula is: |
 |
| Extinguisher Agent |
Pressure |
Fire Class |
Capacity |
Barrel |
Weight |
Discharge Time |
Range Max. |
Item # |
|
FK-5-1-12 |
2.8Mpa |
ABCDF |
700ml |
304L S.S. |
0.80-1.10 Kgs |
15 to 25 sec |
>5M |
AKA700 |
| FK-5-1-12 |
2.8Mpa |
ABCDF |
980ml |
304L S.S. |
1.80-1.90 Kgs |
25 to 30 sec |
>5M |
AKA980 |
| FK-5-1-12 |
2.8Mpa |
ABCDF |
2000ml |
304L S.S. |
3.00-3.25 Kgs |
30 to 40 sec |
>5M |
AKA2000 |
| FK-5-1-12 |
2.8Mpa |
ABCDF |
3000ml |
304L S.S. |
4.50-4.90 Kgs |
45 to 60 sec |
>5M |
AKA3000 |
|
Fire Extinguisher AKA Halon 900
Best For The Car Auto Fire Extinguisher
AKA900
Small enough 980ml to stash in even the most
compact cars, the AKA Halon 980 Auto Fire Extinguisher is true Halon
gas to handle fires common in cars, such as gasoline,
oil, grease or electrical blazes.
Will work on all kinds of fires, trash, wood, and paper, flammable
liquids and electrical blazes.
AKA Halon 980 is about 13-inches tall, the
size of a 1-liter stainless steel bottle and small enough to stash
in a trunk, in some larger glove compartments or even under seats.
Owners who have had to use it said it put out small automotive fires
quickly and easily. It comes with a pressure gauge and a mount
engineered to provide additional stability in a car.
Note that like many other auto-specific fire extinguishers, AKA
Halon 980 is refillable. It comes with a ten-year warranty.
|
|
Fire Extinguisher AKA Halon 2L True Halon Substitute For All Kind Of
Fire AKA2000
AKA Halon 2L is long-lasting and reliable, and
a perfect size for general home use.
This is a chemical fire extinguisher that will work on all kinds of
fires: trash, wood, and paper, flammable liquids, and electrical
blazes. It weighs 8 pounds, has 5 pounds of Halon FK-5-1-12
The AKA Halon 2L has stainless steel overall, forged C6801 valves
and comes with a wall mount and a pressure gauge. Reviewers like
that unlike many home fire extinguishers, this one is refillable.
They also say that its 40-second discharge is enough to put out
substantial household blazes, but at about 17 inches tall, with a
quick release frame stand is able to fit in a cabinet or in other
tight storage spaces. The stainless steel handle and trigger also
earns a lot of praise for sturdiness and durability compared to
cheaper plastic versions. It comes with a ten-year warranty.
|
|
Fire Extinguisher AKA Halon 3L True Halon Substitute For All King Of
Fire AKA3000
AKA Halon 3L is very similar to the AKA Halon 2L, it weighs 10
pounds, has 7 pounds of Halon FK-5-1-12 fire extinguishing agent.
Like the AKA Halon 2L it is also a chemical fire extinguisher that
can handle all types of blazes, whether they are conventional,
liquid, or electrical fires.
Like the AKA Halon 2L the AKA Halon 3L is refillable and comes with
a wall mount and a pressure gauge. Discharge time is 45 to 50
seconds, and spray distance is greater than 16 feet. It is about an
inch taller than the AKA Halon 2L but a few inches narrower, so it
won't take up too much space. Reviewers like the sturdy stainless
steel trigger and say the unit feels durable. Those who've had to
use this extinguisher say it did its job well, but potential buyers
should also note that AKA Halon has been plagued by a significant
number of fire-extinguisher recalls in recent years. It comes with a
ten-year limited warranty.
|
|
One Touch Fire Extinguisher Auto Filling - Refilling Machine |
|
|
FK-5-1-12
AKA
Halon
same as 3M Novec1230
AkaHalon900
AKA Halon
WaterHalon
Fire
Detection Tube Halon
Fire
Extinguisher MRI
Car
Fire 海龍探火管滅火器
MRI海龍滅火器
OEM Production Of Customer's Own Brand Products
可代工生產客戶自有品牌產品
-Mail
Us Payment
SkyPe:
autopure
mexa@autopure.com
www.taiwanwhite.com
MEXA
CO., LTD.
(Since 1979)
The Best Fire
Extinguisher Manufacturer in Taiwan
Tel. +886-2-23657700 Fax.+886-2-23657702
Office:
7F., No. 14 Anmin Street,
Xindian District, New Taipei City, Taiwan, R.O.C. 231071
Factory
:No. 66 Kung Ming 2nd Road, Tsun Tou Liau Industry Area, Tainan 709, Taiwan
Tel.09-1019-6666
FACTORY MAP
www.autopure.com
abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en
fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing
extinguisher
distinguisher
fire extinguisher types
types of extinguishers kinds of fire extinguisher types of fires and
extinguishers fire cylinder type fire distinguisher types
types of fire and fire extinguisher abc fire extinguisher abc extinguisher
electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire
extinguisher kidde fire extinguisher halon fire extinguisher
halon extinguisher fire extinguisher for house kidde extinguisher fire
extinguisher in car water fire extinguisher water extinguisher
carbon dioxide fire extinguisher
dry chemical fire extinguisher
lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher
lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire
extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire
extinguisher mounts
滅火器 滅火器口訣 滅火器種類 滅火器 價格 消防設備 消防器材 車用滅火器 滅火器系列產品
滅火器英文 Fire Extinguisher 滅火器Fire
Ex. 滅火器哪裡買 家用滅火器 拉瞄壓掃
滅火器認可基準 海龍滅火器 赤海龍滅火器 Novec 1230
