Fire Extinguisher
Novec 1230 FK-5-1-12 AKA Halon
Fire Extinguisher MRI
Non-magnetic clean gas fire extinguisher

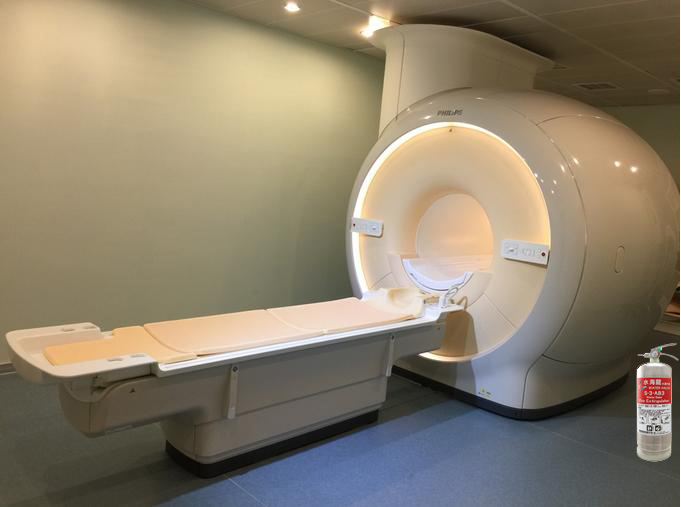

Nuclear magnetic resonance MRI fire extinguisher

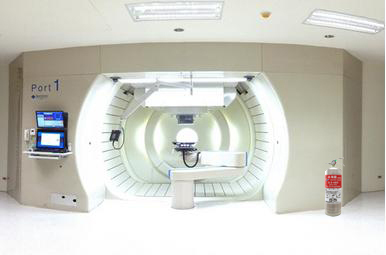

Proton Therapy PT fire extinguisher

The main feature of AKA Halon non-magnetic fire extinguisher is non-magnetic,
The container material is made of non-magnetic stainless steel.
The use of fire extinguishing agent FK-5-1-12 is
an important substitute for halon fire extinguishing agent.
It is colorless, odorless, low-toxic, non-conductive, does not pollute the protected objects and
will not cause damage to property and precision facilities, nor
It will cause human and livestock hazards during use.
It can reliably extinguish Class A, B, C fires and Class E electrical fires
with a low extinguishing concentration, and it does not contain particles or oily residues after release.
No damage to the atmospheric ozone layer, ODP is 0
The global greenhouse effect potential GWP is 1
The retention time in the atmosphere ALT is 5 days
which meets environmental protection requirements. AKA Halon Chihailong non-magnetic
fire extinguisher is specially designed for MRI... and other strong magnetic field environments.
The clean gas fire extinguishers developed have been widely used in large hospitals and
scientific research institutions at home and abroad.
Valid 20 Years

AKA Halon FK-5-1-12 is no corrosive, has good insulating property, never damages electronic equipment, precision instruments, paper documents, cultural relics and antiques, generates no residue after use, and may substitute for sprinkler system, and dry chemical and foam extinguishing system to protect the high-valued assets.

FK-5-1-12 extinguishing agent has excellent extinguishing characteristics and it can put out Type A, B and C fire, is non-conductive and after ejection it fast evaporates without any residue. Its extinguishing concentration is 3.5% and 4.5% for Type A or Type B fire, which mostly approaches that of halon extinguishing agent.

Ozone Depletion Potential Of Zero
FK-5-1-12 clean extinguishing agent has good environmental harmony, and its Ozone Depletion Potential (ODP) is 0, Global Warming Potential (GWP) <1.0, and the Atmospheric life Time (ALT) is 0.014 year

Results of toxicity test of FK-5-1-12

Test item	Test result
4-hour acute inhalation	Almost no toxicity (LC50＞100000ppm)
Carcinogenicity	No carcinogenicity
Acute oral	Low (LD50＞5000mg/kg)
Acute dermal	Low (LD50＞2000mg/kg)
Irritation to eyes	No irritation
Irritation to skin	No irritation
Allergy to skin	Non-skin sensitizer
Chromosome aberration	Negative

From the above it is clear that FK-5-1-12 extinguishing agent ensures the extinguishing efficiency, meets the requirements on use safety, is almost harmless to human body, and is much suitable for extinguishing and protection of the person-residing place.

Results of toxicity test of FK-5-1-12

Test item	Test result
4-hour acute inhalation	Almost no toxicity (LC50＞100000ppm)
Carcinogenicity	No carcinogenicity
Acute oral	Low (LD50＞5000mg/kg)
Acute dermal	Low (LD50＞2000mg/kg)
Irritation to eyes	No irritation
Irritation to skin	No irritation
Allergy to skin	Non-skin sensitizer
Chromosome aberration	Negative

Quality specification

Product	Purity/%	Water content/ ppm	Acidity (as HCl)/ ppm	Non-volatile residue(%)	Suspended matter or sediment
FK-5-1-12	≥99.7	≤10	≤3	≤0.01	NONE

FK-5-1-12 Physical Properties：

Property	Unit Value
Molecular Mass	316.4
Boiling Point at 1013bar	49.2℃
Freezing Point	-108 ℃
Liquid Density 25℃	1.6g/ml
Liquid Viscosity	0.524 cp
Critical Temperature	168.66℃
Critical Pressure	18.66 bar
Critical Density	639.1kg/m³
Heat Of Vaporization At Boiling Point	88 kj/kg
Solubility Of Water in FK-5-1-12 25℃	<0.001 wt%
Vapour Pressure 25℃	0.40（5.87）bar(psia)
Dielectric Strength	~ 110KV/mm

FK-5-1-12
Compare to the Environmental spec of FK-5-1-12 and Halon and part of the product：

Item	FK-5-1-12	HFC-227ea	HFC-236fa	Halon1211	Halon1301
ODP	0	0	0	4	10
GWP	1	3800	9400	11300	6900
ALT	0.014	36.5	226	11	65
ODP: Ozone Depletion Potential GWP: Global Warming Potential ALT:Atmospheric Life Time (per Year)

Highly efficient and safe for people
The extinguishing concentration of FK-5-1-12 clean extinguishing agent is much lower than NOAEL value, and has extremely low toxicity and thus high safety. The extinguishing agent is registered in USE.P.A.T.S.C.A.

FK-5-1-12 Concentrations and Safety Margins Comparison：

Item	FK-5-1-12	HFC-227ea	CO2	Halon1301
Boiling Point ℃	49.2	-16.4	-78.4	-57.8
Use Concentration	4-6%	7.5-8.7%	30-75%	5%
NOAEL	10%	9%	＜5%	5%
Safety Margine	72-122%	5.9-20%	Lethal	0
NOAEL： Invisible Harm Concentration

Safety Margins= FK-5-1-12 -Use Concentration / Use Concentration X 100%

MEXA CO., LTD. (Since 1979)
The Best EV Lithium Battery Fire Extinguisher Manufacturer in Taiwan
Tel. +886-2-23657700 Fax.+886-2-23657702
7F., No. 14 Anmin Street, Xindian District, New Taipei City, Taiwan, R.O.C. 231071

abcdk fire extinguisher fire distinguisher fire ext fire fire extinguisher en fire extinguisher fire and fire extinguisher
kitchen fire extinguisher kitchen extinguisher fire equipment servicing extinguisher distinguisher fire extinguisher types
types of extinguishers kinds of fire extinguisher types of fires and extinguishers fire cylinder type fire distinguisher types
types of fire and fire extinguisher abc fire extinguisher abc extinguisher electrical fire extinguisher fire extinguisher for electrical fire
electrical extinguisher co2 fire extinguisher car fire extinguisher home fire extinguisher kidde fire extinguisher halon fire extinguisher
halon extinguisher fire extinguisher for house kidde extinguisher fire extinguisher in car water fire extinguisher water extinguisher
carbon dioxide fire extinguisher dry chemical fire extinguisher lowes fire extinguisher fireball extinguisher
carbon dioxide extinguisher abc dry chemical fire extinguisher fire extinguisher lowe's dry chemical extinguisher
dry chem extinguisher small fire extinguisher amerex fire extinguisher 5lb fire extinguisher best fire extinguisher for home
boat fire extinguisher fire extinguisher brackets 5 pound fire extinguisher fire extinguisher mounts
滅火器滅火器口訣滅火器種類滅火器價格消防設備消防器材車用滅火器滅火器系列產品
滅火器英文 Fire Extinguisher 滅火器Fire Ex. 滅火器哪裡買家用滅火器拉瞄壓掃
滅火器認可基準海龍滅火器赤海龍滅火器 Novec 1230

Extinguisher Agent	Pressure	Fire Class	Capacity	Barrel	Weight	Discharge Time	Range Max.	Item #
FK-5-1-12	2.8Mpa	ABCDF	700ml	304L S.S.	0.80-1.10 Kgs	15 to 25 sec	>5M	AKA700
FK-5-1-12	2.8Mpa	ABCDF	980ml	304L S.S.	1.80-1.90 Kgs	25 to 30 sec	>5M	AKA980
FK-5-1-12	2.8Mpa	ABCDF	2000ml	304L S.S.	3.00-3.25 Kgs	30 to 40 sec	>5M	AKA2000
FK-5-1-12	2.8Mpa	ABCDF	3000ml	304L S.S.	4.50-4.90 Kgs	45 to 60 sec	>5M	AKA3000
