Auto Fire Extinguisher ¡V AKA Halon
The car burned, the fire extinguisher was not available on the car, and
the firetruck failed to arrive in time. Seeing that the car burned out.

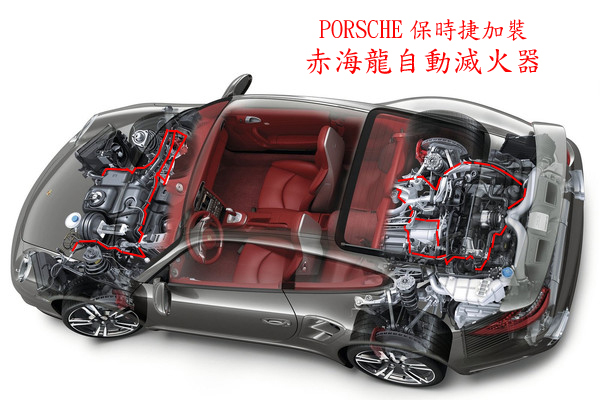

The "Red Sea Dragon" automatic fire extinguishing system is installed on
the car in advance.

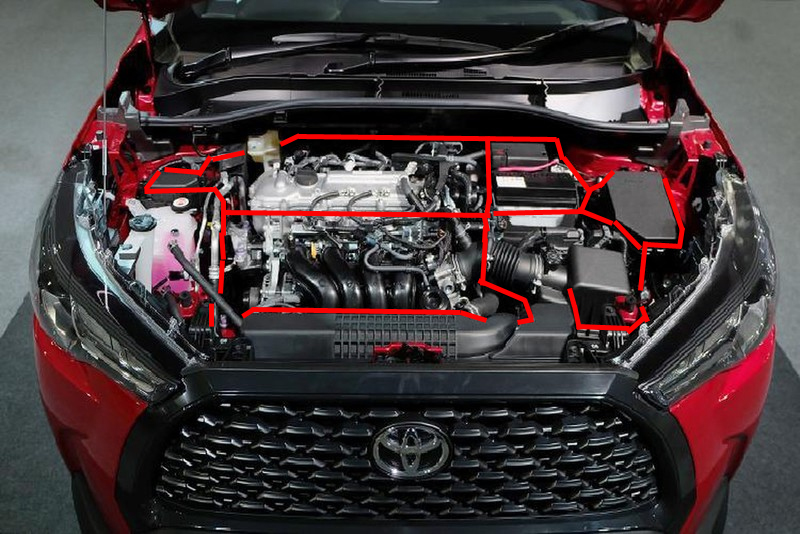

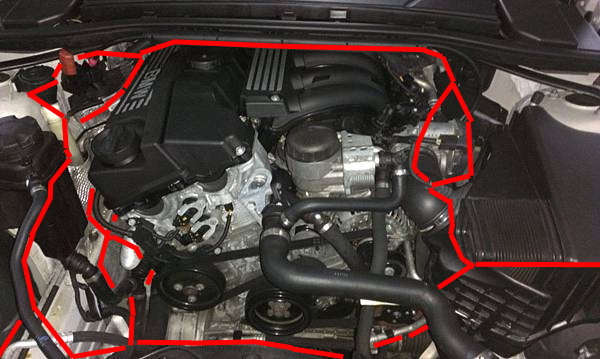

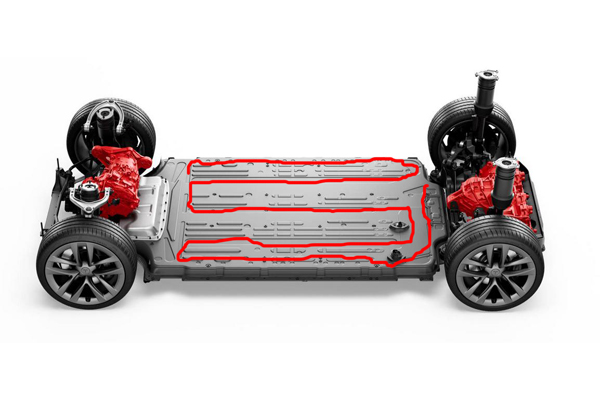

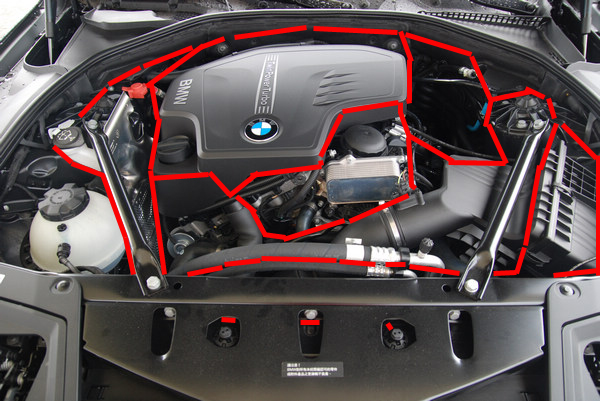

When a fire occurs between the pipes of the fire extinguishing system,
Due to the increase in the temperature of the fire point, the pipeline at
that location ruptured in high temperature, and Halon gas fire extinguishing
agent was sprayed out to extinguish the fire.
AKA Halon FK-5-1-12 is a new type of environmentally friendly, efficient and
clean, fire extinguishing agent, used to replace Halon, AKA Halon FK-5-1-12
does not damage electronic equipment, is non-corrosive, non-conductive,
clean and has no residue.
After use, there will be no foam or powder fire extinguishing agent, and
the miserable state after use can quickly resume work and continue to
implement current affairs, that is, if the car can still start driving after
AKA Halon puts out the fire, you can leave the scene and go to the garage.
ODP is 0
GWP is 1
ALT (0.014 years) Atmospheric retention time is 5 days

Harmless to humans, animals and animals And it is liquid under normal
temperature and pressure, which will not burn or explode, and it is very
convenient for transportation and storage.
AKA Halon FK-5-1-12 can be used in computer rooms, communication
rooms, engines, ships, cruise ships, ships, aerospace, aircraft,
supercars, automobiles, school buses, buses, tour buses, trucks,
transportation vehicles, museums , file room,paint room,
AC power control room, engine turbine room and pump room...etc.

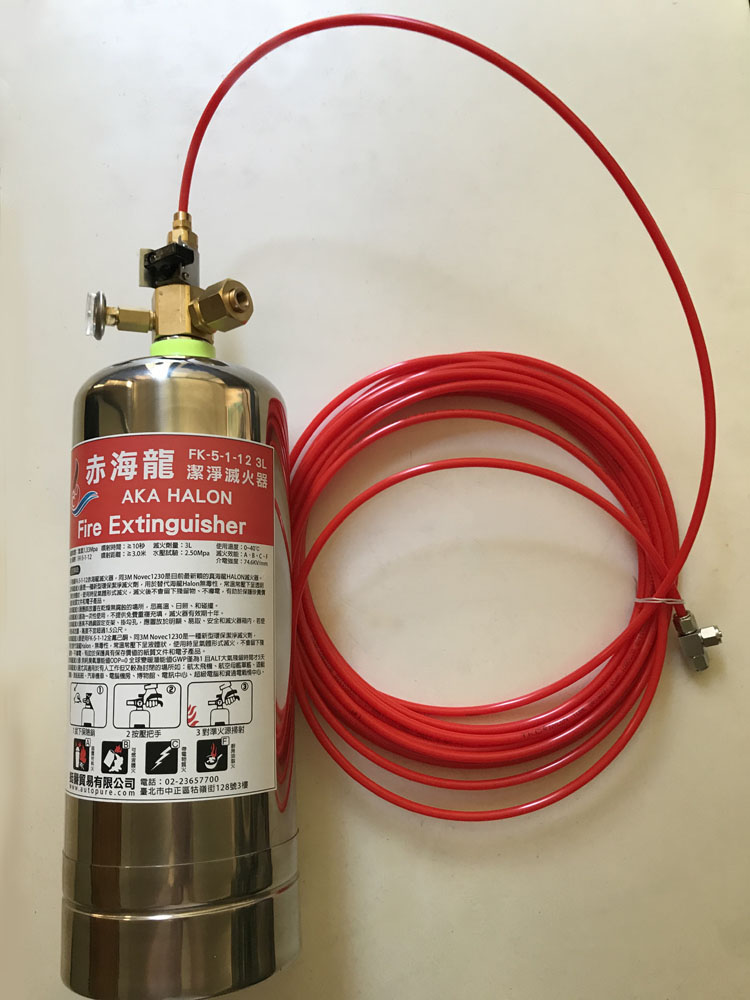

AKA Halon fire detection tube temperature-sensing automatic fire extinguishing device is a simple, reliable, and timely independent fire detection and fire extinguishing device developed in Taiwan in recent years, referred to as "fire detection tube fire extinguishing device". This type of fire extinguishing device
uses a flexible and bendable fire detection tube as a fire detection and alarm component, and at the same time, this fire detection tube can also be used as a pipeline for the delivery and discharge of the fire extinguishing agent.

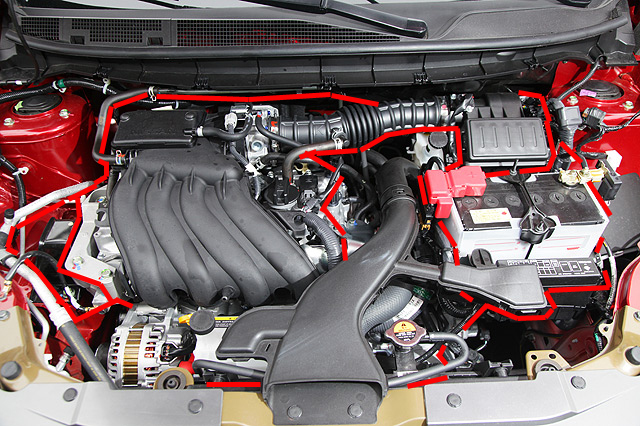

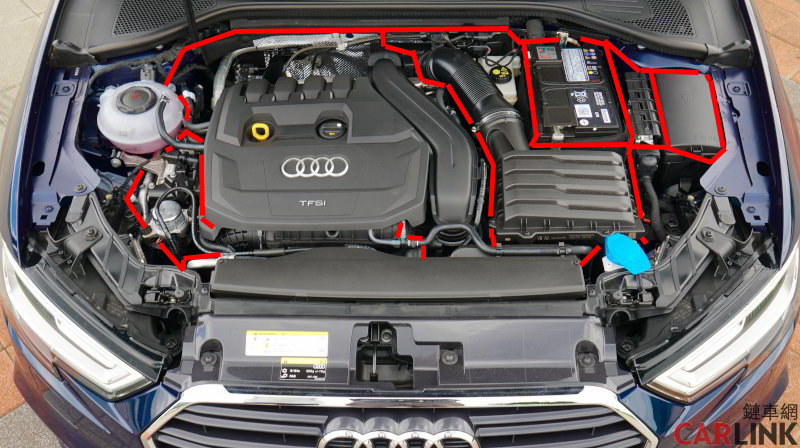

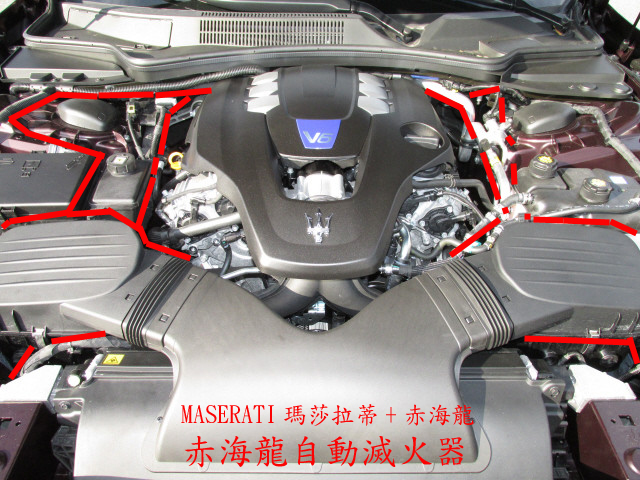

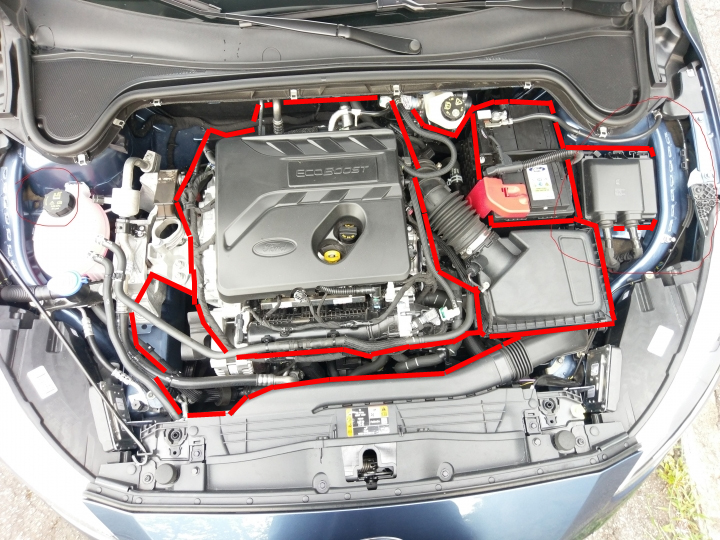

The fire detection tube can be conveniently arranged near every potential fire source.
Once a fire occurs, the fire detection tube is heated and ruptured, and the fire extinguishing agent is immediately released to extinguish the fire. It can make up
for the deficiencies of existing fixed gas automatic fire extinguishing devices,
and is used for fire protection in places where metal pipe networks, nozzles or
fire alarm systems cannot be installed, especially in small spaces and special environments.

Composition and principle:

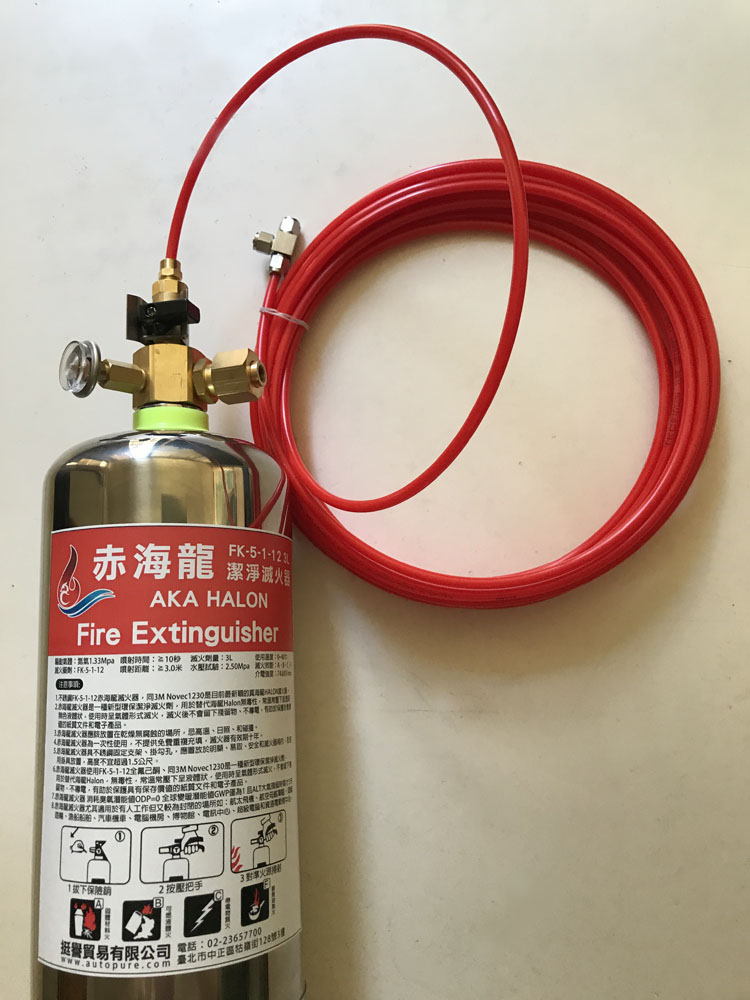

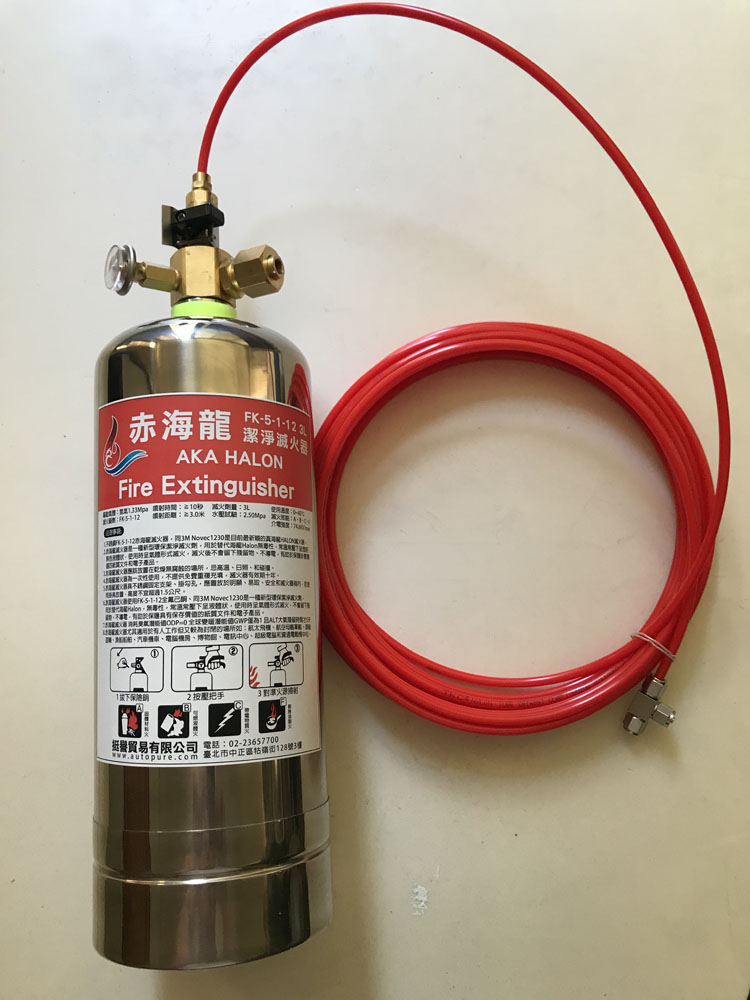

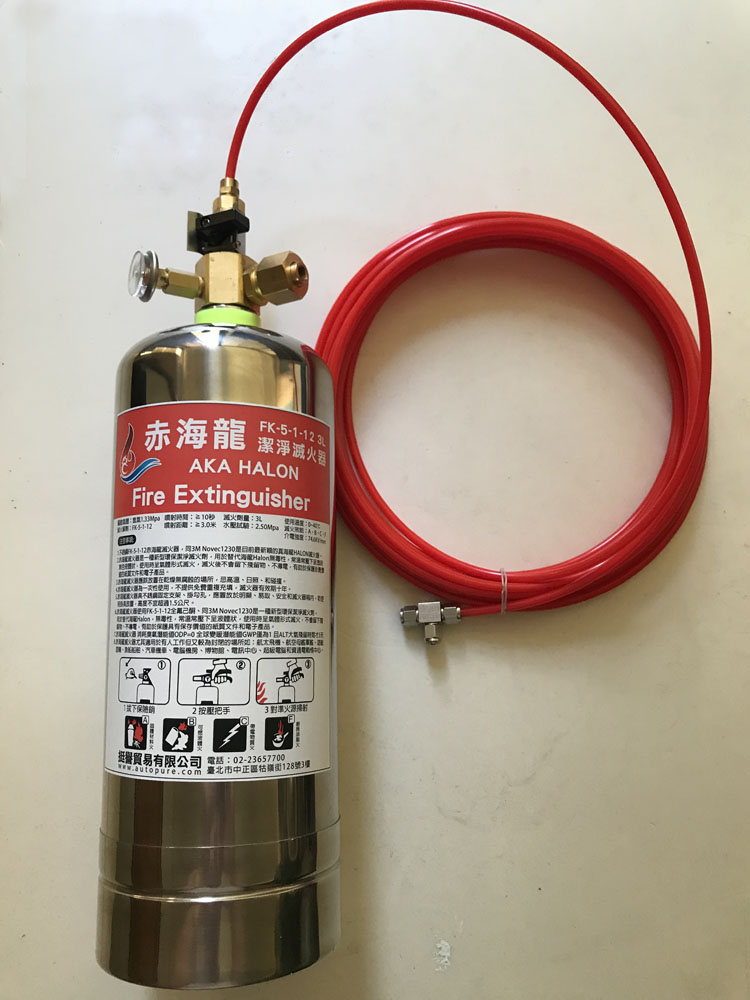

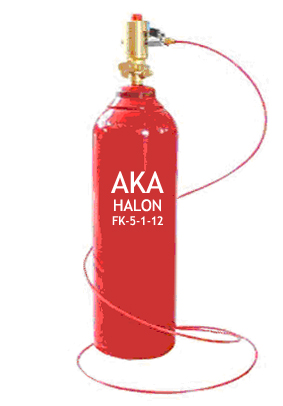

1. Direct fire detection tube fire extinguishing device It is mainly composed

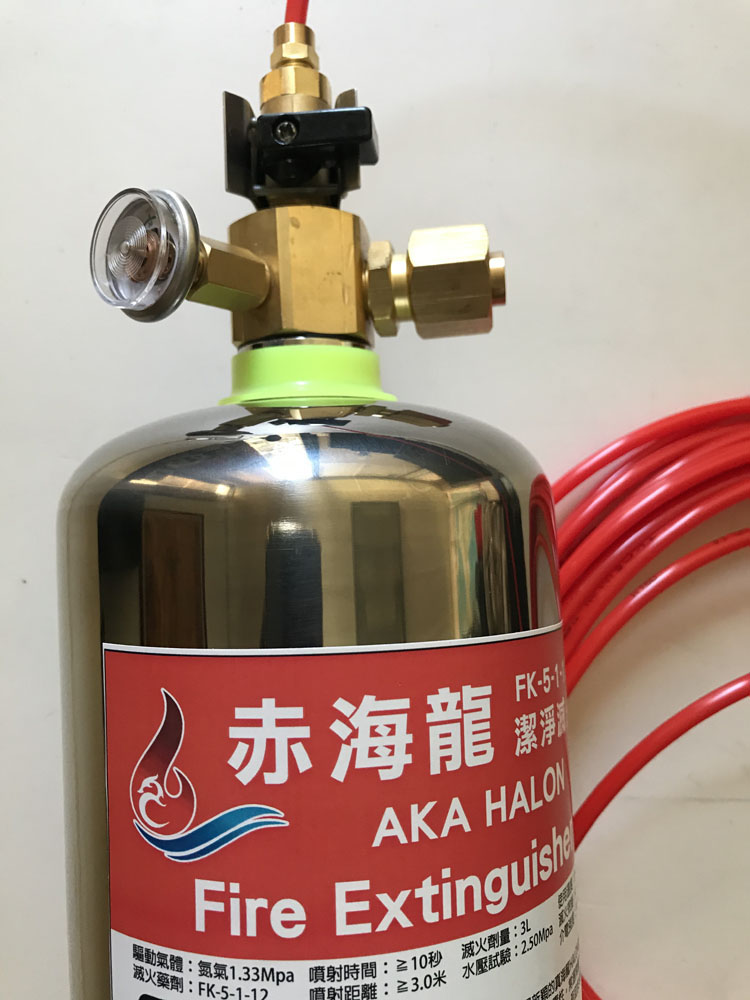

of fire extinguishing agent storage containers, container valves, fire detection pipes, pressure gauges, one-way valves, It is composed of pressure switch, alarm bell (optional accessory) and special joint for fire detection pipe.
The direct type is the fire detection tube in the fire detection system, which is used as a fire detection component and as a delivery component of the extinguishing agent. That is to say, once the fire detection tube detects a fire, it will directly release the extinguishing agent to extinguish the fire. Direct fire detection tube fire extinguishing device, mainly used for equipment with a certain enclosure, Such as communication cabinets, power distribution boxes, computer rooms, etc. for fire fighting.

2. Indirect fire detection tube fire extinguishing device Mainly consists of fire extinguishing agent storage container, container valve, fire detection tube, release tube, nozzle, Pressure gauge, one-way valve, pressure switch, alarm bell (optional accessory) and It is composed of special joints for fire detection pipes. The indirect type is the fire detection tube in the fire extinguishing system, which is only used as a fire detection component. When the fire detection tube detects a fire, it will activate the container valve on the fire extinguishing agent storage container, The fire extinguishing agent is delivered by a special fire extinguishing agent release pipe to extinguish the fire. The indirect fire detection tube fire extinguishing device is mainly used to perform local The fire extinguishing method can also be used to extinguish the fire by flooding the entire room.

Device features: As a simple, low-cost and reliable independent automatic fire extinguishing system, It does not need any power supply, no special smoke and temperature detection fire detectors, no complicated electronic equipment and pipelines, and uses its own pressure storage, relying on a charged fire detection tube and a set of fire detection bottle sets to quickly , Accurately and effectively detect and extinguish the fire source, integrate the alarm and extinguishment, and extinguish the fire in the initial stage. It can greatly reduce the cost of fire extinguishing equipment, reduce the amount of fire extinguishing agent, reduce the cost of each fire extinguishing, and reduce the damage to personnel. By adopting this device, the original protection of a larger enclosed space can be changed to directly protect various valuable equipment in a smaller enclosed space. Achieve close-range, point-to-point (fire extinguishing agent spray point and fire point) rapid fire extinguishing.

Applicable places:
1. The microwave computer room, electronic computer room, transformer and distribution room in the radio and television transmission tower and Uninterruptible power supply room.
2. Program control exchange room, control room and signaling transfer point room of communication system.
3. The control room, electronic equipment room, computer room, relay room, cabin of the power plant, Engine room, engine room, ammunition compartment, ship, tank, train, bus, truck, Tour buses, other transportation vehicles carrying passengers, personnel, and passengers; Substation and distribution room; cable crossing, dense and intermediate joints, etc.
4. Substation and distribution cabinets, elevator control cabinets, wire and cable troughs or bridges with trough boxes.
5. Assembling room with staff, other special places and airtight enclosure or Important cabinet equipment.

AKA Halon FK-5-1-12 is harmless to humans, animals and things

AKA Halon FK-5-1-12 stays in the atmosphere for a short time of about 5 days
and has an excellent environmental coefficient.

Large Safety Margin
Since AKA Halon FK-5-1-12 provides a larger safety margin of 72-122% than Halon fire extinguishing agent, when used on ships and aircraft, its effective fire extinguishing concentration of 4.5~5.8% will not exceed the safety level limit.

In terms of safety, AKA Halon toxicity safety margin is as high as 67~150%,
which means that it is safer to the human body during use.
It has been approved by the US Environmental Protection Agency and
can be used in situations where people are present.
AKA Halon is currently the most perfect substitute for Halon.
Its excellent fire extinguishing performance
AKA Halon and environmental friendliness determine its wide application prospects
in many important places, such as: manned communication room, computer and
electrical control room, chemical dangerous goods Cargo compartments, vehicle
cockpits and engine compartments, power cabins of aircraft and ships, etc.
AKA Halon FK-5-1-12 is a colorless, transparent and insulating liquid at room temperature.
It is an environmentally friendly and clean new fire extinguishing agent.
AKA Halon FK-5-1-12 has been listed in
ISO14520-2006 "Physical Characteristics and System Design of Gas Fire Extinguishing System",
In standard documents such as NFPA2001 "Code for Design of Clean Gas Fire Extinguishing System",
the application design of this product has been specified.
AKA Halon fire extinguishing agent is a new type of Halon fire extinguishing agent substitute.
The fire extinguishing agent has excellent environmental performance and low toxicity characteristics.
It has comprehensive performances such as high fire fighting efficiency, environmental
protection and cleanness, safe use, and no damage to electronic precision equipment.
AKA Halon FK-5-1-12 clean fire extinguishing agent has good environmental protection
characteristics and has no destructive effect on the ozone layer.
The ODP is 0,
The global warming coefficient GWP is 1, and
The survival life in the atmosphere (ALT) is 0.014 years.

It is better than the widely used alternative Halon fire extinguishing agent
(heptafluoropropane HFC-227ea, HFC-236fa) and so on.
The ODP value of these fluoroalkane fire extinguishing agents is 0,
but their GWP value is relatively large.
It is 3800 times that of FK-5-1-12 which has a negative effect on global warming
and climate change.
The environmental performance of AKA Halon FK-5-1-12 fire extinguishing agent
meets the requirements of European and American environmental protection regulations.
AKA Halon FK-5-1-12 fire extinguishing agent has excellent fire extinguishing performance,
and its fire extinguishing concentration:
The extinguishing concentration of Class A fire is 3.5%,
The fire extinguishing concentration of Class B fire is 4.5
which is the closest to the performance of Hailong fire extinguishing agent,
and is much smaller than other fluoroalkane sealong alternatives
(5 for Halon 1301; 7.5-8.7 for HFC-227ea; 30-75 for CO2).
AKA Halon FK-5-1-12 fire extinguishing agent can extinguish fires of Class A, B and C.
It is non-conductive and vaporizes quickly after spraying, leaving no residue.
